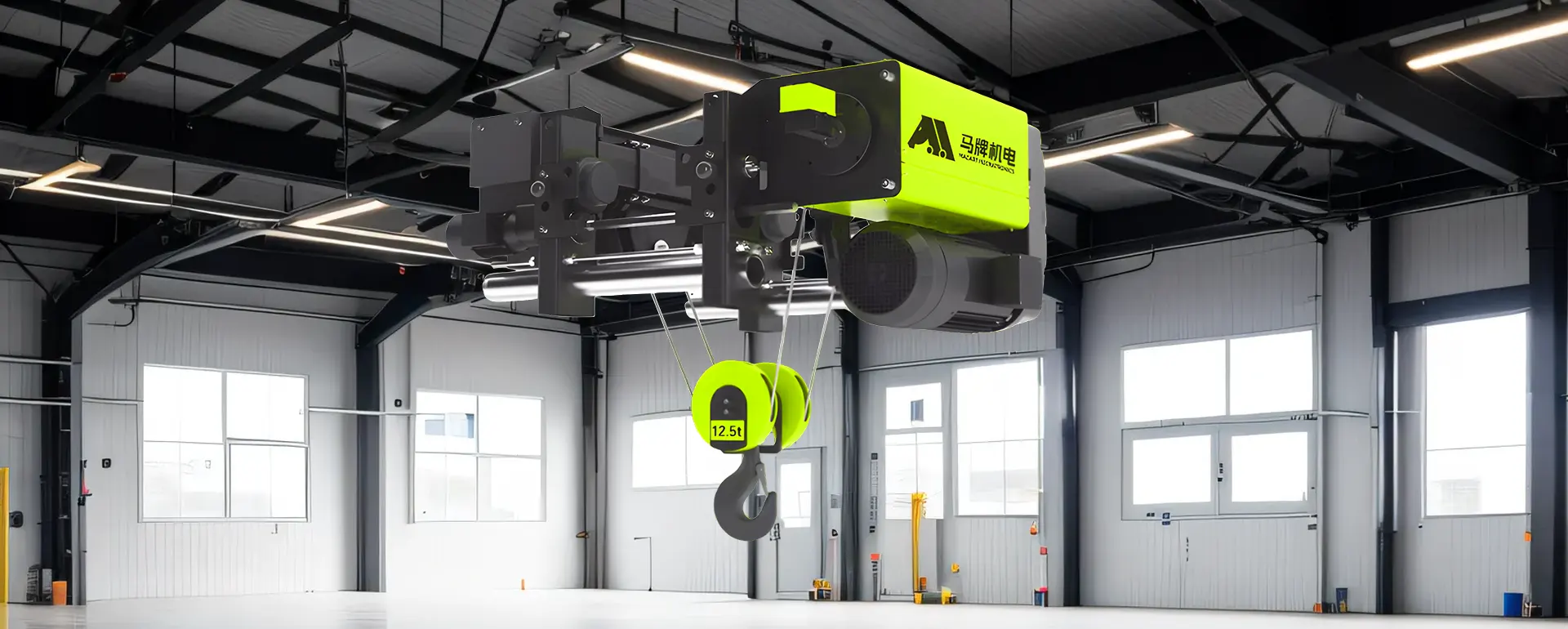

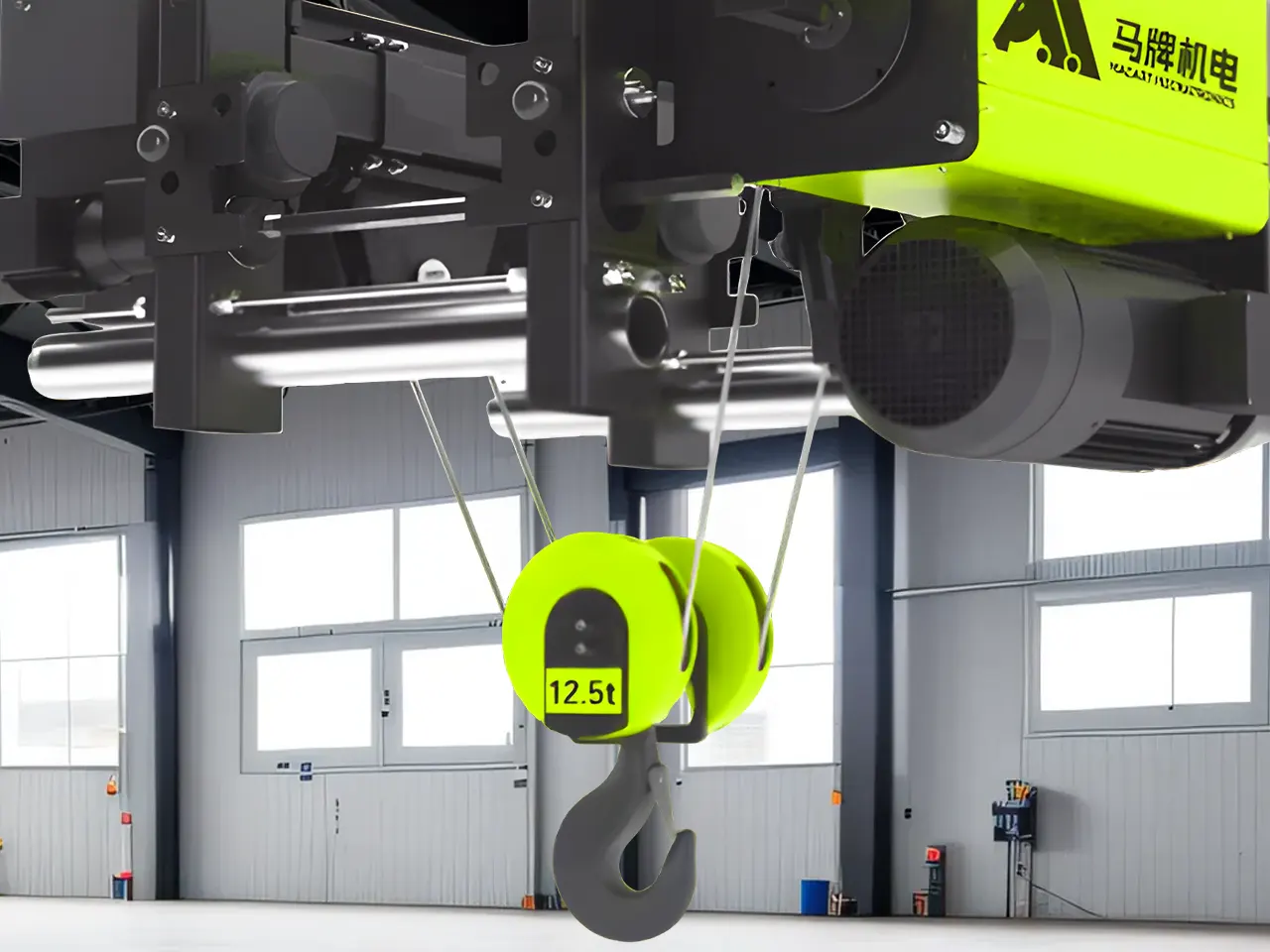

Electric hoist is a kind of lifting equipment that integrates operation and lifting. It is usually installed on overhead cranes or gantry cranes. It has the characteristics of small size, light weight, simple operation, and convenient use. It is widely used in industrial and mining enterprises, warehouses, docks, and other places. Electric hoists have advantages such as compact structure, low energy consumption, low noise, and high cost performance.
Rated load (Range 5-80T)
Lifting height
Lifting speed
Performance parameters:
Rated load: 10T (design range of 5-80T options)
Working class: M5
Lifting height: 9m
Lifting speed: 5/0.8m/min
Pulley ratio: 4/1
Operating speed: 2-20m/min
Track width for operation: 300-450mm
Upper limit of hook position: 650mm
Hoist length: 1010mm
Hoist weight: 750kg
Customization available? Yes
Product Features:
Low noise, low energy consumption, high space utilization, high maintenance-free
Product Advantages:
This electric hoist runs smoothly with low noise and low energy consumption. The working level has been upgraded to M5. It has superior overall performance and high cost-effectiveness.
